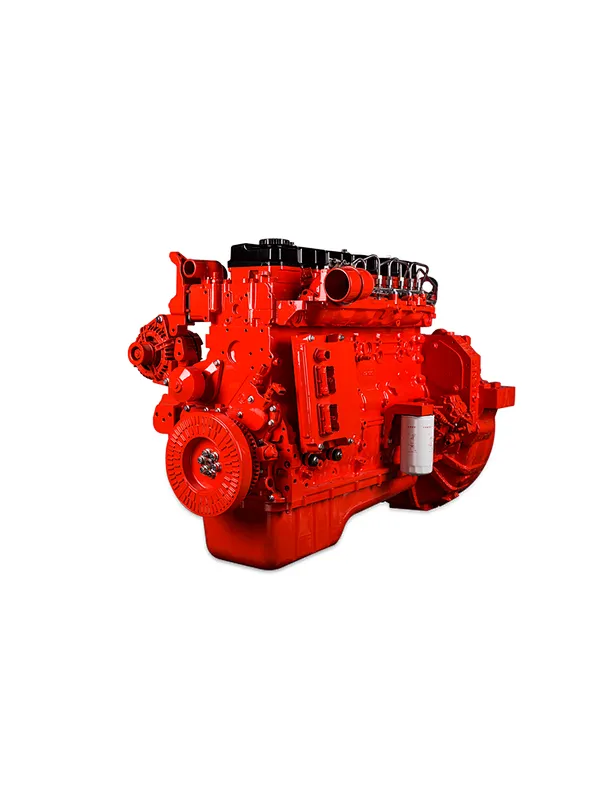

QSB6.7 Construction Machinery Engines

Model NO. QSB6.7

QSB6.7-C130-30 / QSB6.7-C155-30 / QSB6.7-C160-31 / QSB6.7-C170-30 / QSB6.7-C190-30 / QSB6.7-C190-31 / QSB6.7-C205-30 / QSB6.7-C215-30 / QSB6.7-C215-31 / QSB6.7-C220-30
/ QSB6.7-C220-31 / QSB6.7-C240-30 / QSB6.7-C240-31 / QSB6.7-C250-30 / QSB6.7-C260-30 / QSB6.7-C260-31

Quantity

others

QSB3.9 Construction Machinery Engines	QSB4.5 Construction Machinery Engines
QSB5.9 Construction Machinery Engines	QSB6.7 Construction Machinery Engines
QSC8.3 Construction Machinery Engines	QSL8.9 Construction Machinery Engines
QSZ13 Construction Machinery Engines

Type	Inline 6 cylinders, water-cooled, four strokes, electronically-controlled high pressure injection
Bore×stroke (mm)	107×124
Displacement(L)	6.7
Aspiration	charged, inter-cooled
Maximum power(Hp/kw)	260/194
Maximum torque(N·m)	990
Control system	ECM
Fuel system	BOSCH High pressure common rail system
Emission certification	NS III/EU Stage IIIA
Dry weight (Kg)	520
Length×Width×Height(mm)	1150×810×910

CONTACT

henry@cumminsdealers.com

0086-13906019676

NO. #906, JINLONG ROAD, JIMEI DISTRICT, XIAMEN CITY, FUJIAN PROVINCE, CHINA

E-MAIL

Model	Emission standard	Rated power output (kW@RPM)	Max. Torque (N.m@rpm)	Cylinders	Displacement (L)	Aspiration
QSB6.7-C130-30	NS III/EU StageIIIA	99@2200	580@1400	6	6.7	charged, inter-cooled
QSB6.7-C155-30	NS III/EU StageIIIA	116@2200	622@1500	6	6.7	charged, inter-cooled
QSB6.7-C160-31	NS III/EU StageIIIA	119@2500	732@1500	6	6.7	charged, inter-cooled
QSB6.7-C170-30	NS III/EU StageIIIA	129@2200	800@1500	6	6.7	charged, inter-cooled
QSB6.7-C190-30	NS III/EU StageIIIA	142@2200	931@1400	6	6.7	charged, inter-cooled
QSB6.7-C190-31	NS III/EU StageIIIA	145@2050	930@1300	6	6.7	charged, inter-cooled
QSB6.7-C205-30	NS III/EU StageIIIA	153@1800	929@1300	6	6.7	charged, inter-cooled
QSB6.7-C215-30	NS III/EU StageIIIA	158@2000	962@1300	6	6.7	charged, inter-cooled
QSB6.7-C215-31	NS III/EU StageIIIA	160@2500	888@1500	6	6.7	charged, inter-cooled
QSB6.7-C220-30	NS III/EU StageIIIA	163@2200	949@1500	6	6.7	charged, inter-cooled
QSB6.7-C220-31	NS III/EU StageIIIA	164@2000	950@1250	6	6.7	charged, inter-cooled
QSB6.7-C240-30	NS III/EU StageIIIA	178@2200	970@1500	6	6.7	charged, inter-cooled
QSB6.7-C240-31	NS III/EU StageIIIA	178@2000	970@1400	6	6.7	charged, inter-cooled
QSB6.7-C250-30	NS III/EU StageIIIA	186@2200	990@1500	6	6.7	charged, inter-cooled
QSB6.7-C260-30	NS III/EU StageIIIA	194@2200	990@1500	6	6.7	charged, inter-cooled
QSB6.7-C260-31	NS III/EU StageIIIA	194@2400	990@1501	6	6.7	charged, inter-cooled
