Product Advantages

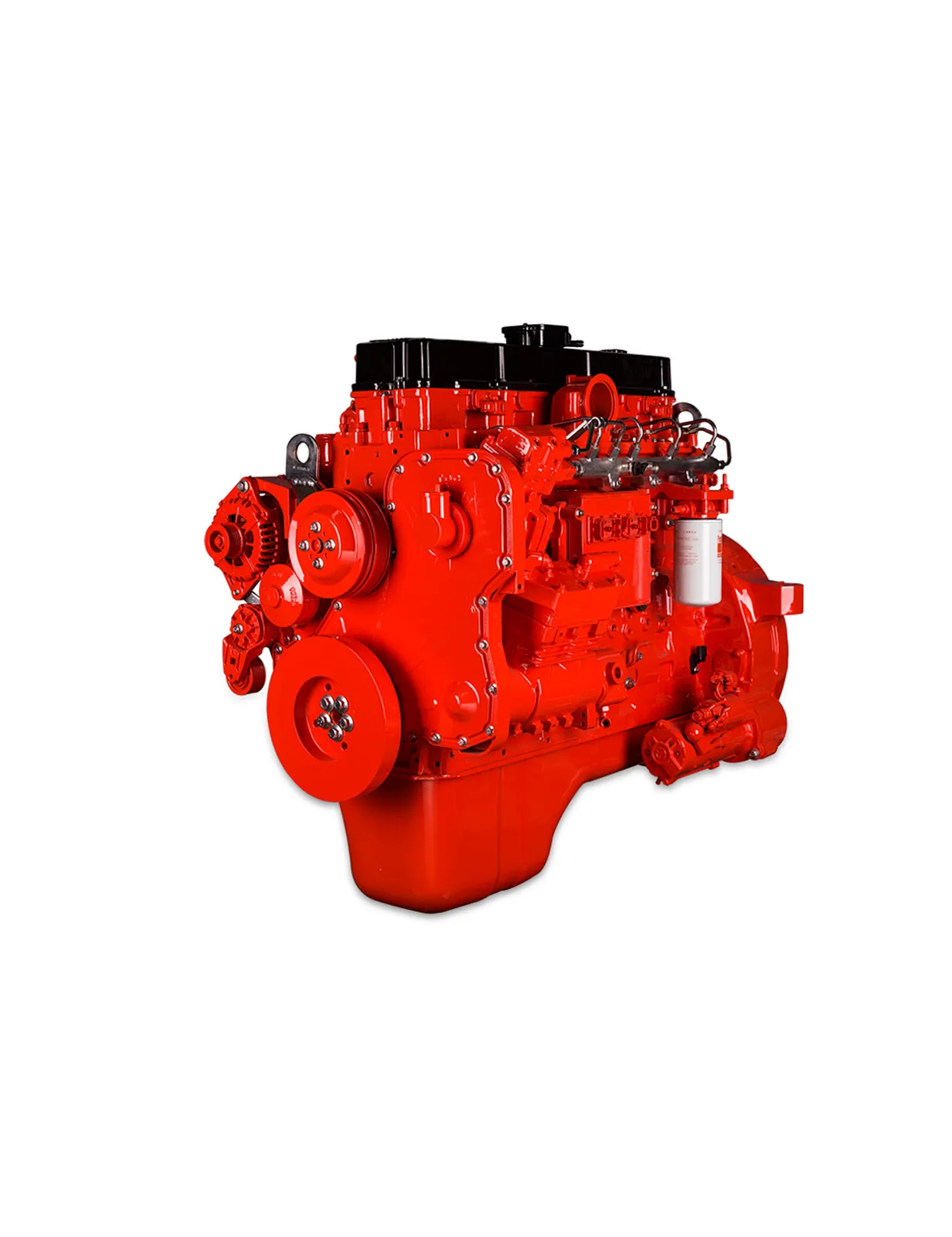

Cummins ISL series 8.9L and 9.5L full-authority electronic control engines, ranging from 290-400 Hp. Compared to engines with same displacement, these engines are lighter and only weighs 714 kg, with more compact structure and higher power.Featuring ultra high output per liter and low speed torque, ISL's power can be as good as heavy-duty engines with larger displacement.With stable and reliable performance, durability and supreme fuel economy, ISL can greatly increase carrying capacity and operation efficiency of vehicles, thus becoming an ideal power choice of heavy truck, truck tractor, etc.
Leading manufacturing technology
Integrated design of cylinder block and oil circuit, forged crankshaft with high tension steel, highly durable pistons and liner with special surface treatment process all ensure the engine's reliability and durability.
Advanced electronic intelligence platform
Electronic control module with ultra large capacity share information among high speed datalinks, to ensure that the engine maintains the best operating status, effective fuel savings and low emissions under various loads.
Effective fuel saving
With higher injection pressure up to 1800 bar, High Pressure Common Rail Fuel System features more precise control of injection timing and amount of fuel, further improving low-speed performance and cold start performance.
Excellent power output
Fast startup, good acceleration and gradeability, superior torque output at low speed。
Economical usage
Highly integrated engine subsystems can realize excellent power, ultra long service life, and long maintenance intervals.
Leading emission level
The NS V version is developed on the same platform as EEV version, featuring high durability and reliability. It can be upgraded to meet Euro V/EEV standard simply by adjusting its urea injection amount and upgrading the aftertreatment system, complicated structural adjustment is not necessary.
Product Portfolio
| Engine model |
Emission
standard
|
Rated power output
(kW@rpm)
|
Peak torque
(N.m@rpm)
|
Cylinders |
Displacement (L) |
Aspiration |
After treatment |
| ISL290 50 |
NS V |
213@2100 |
1055@1100-1700 |
6 |
8.9 |
charged, inter-cooled |
SCR |
| ISL292 50 |
NS V |
215@2100 |
1055@1100-1700 |
6 |
8.9 |
charged, inter-cooled |
SCR |
| ISL315 50 |
NS V |
232@2100 |
1200@1100-1700 |
6 |
8.9 |
charged, inter-cooled |
SCR |
| ISL325 50 |
NS V |
239@2100 |
1350@1100-1500 |
6 |
8.9 |
charged, inter-cooled |
SCR |
| ISL340 50 |
NS V |
250@2100 |
1500@1200-1400 |
6 |
8.9 |
charged, inter-cooled |
SCR |
| ISL360 50 |
NS V |
265@2100 |
1550@1100-1500 |
6 |
8.9 |
charged, inter-cooled |
SCR |
| ISL375 50 |
NS V |
275@2100 |
1550@1100-1500 |
6 |
8.9 |
charged, inter-cooled |
SCR |
