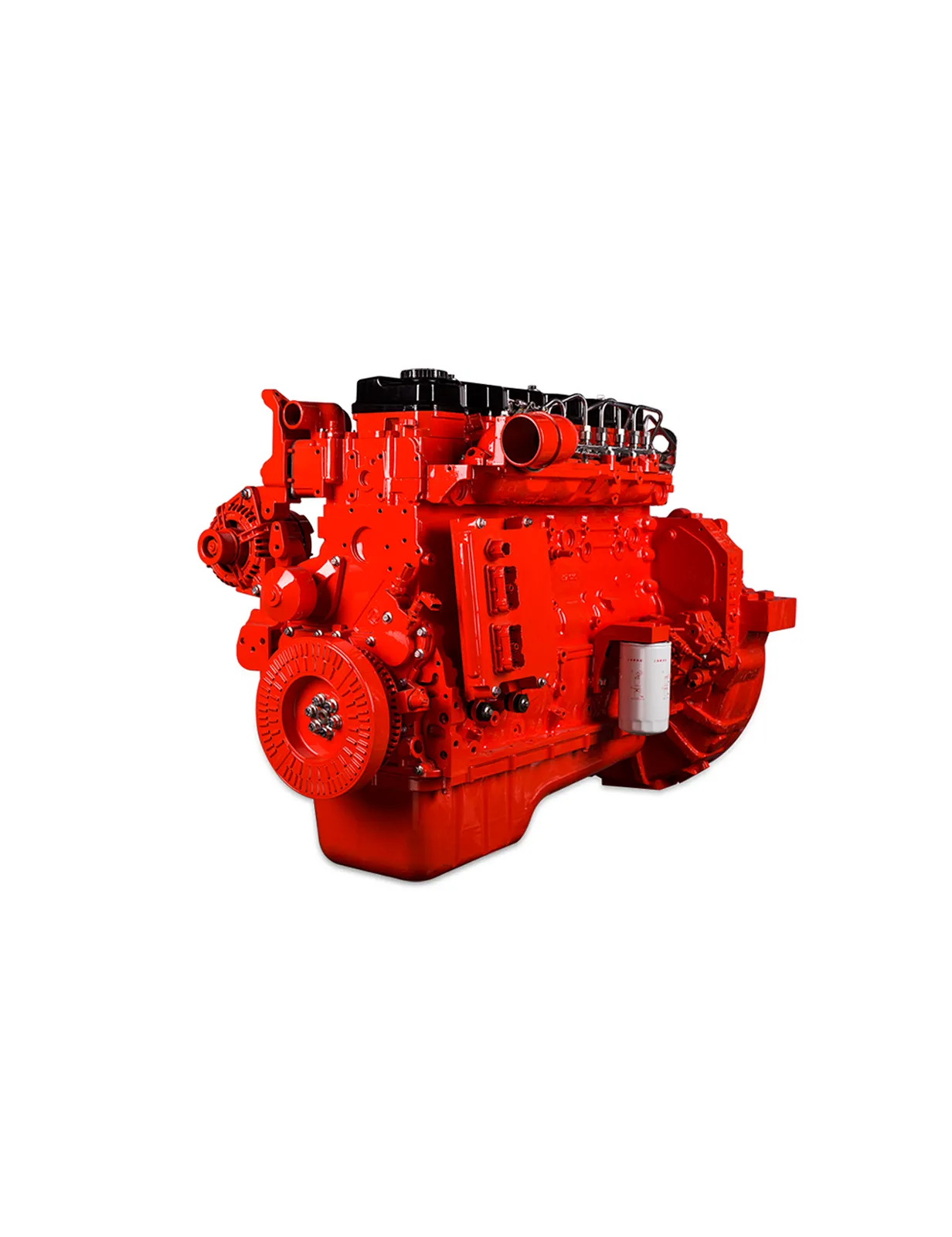

Type	Inline 6 cylinders, water-cooled, four strokes, electronically-controlled high pressure injection
Bore×stroke (mm)	107×124
Displacement(L)	6.7
Aspiration	charged, inter-cooled
Maximum power(Hp/kw)	300/220
Maximum torque(N·m)	1100
Control system	ECM
Fuel system	BOSCH High pressure common rail system
Emission certification	NS V/Euro V, NS IV/Euro IV, Euro Ⅲ
Dry weight (Kg)	519
Length×Width×Height(mm)	940×742×837

Product Advantages

ISD series engines have been “model” products among the similar products in the industry with their exceptional reliability. ISD series engines have become the first power choice of domestic mainstream truck and bus manufacturers with their stable and dependable product platform and sustainable technological development advantages, due to increasingly stringent emission regulations .

ISD series 4.5L engines with full-authority electronic control, ranging from 140-300 horsepower, are widely used in 6-11 meter-long highway bus, tour bus, school bus applications. The engines feature high operation efficiency, long work cycle, and durability. With advanced electronic control system, it can realize intelligent management, data communication, realtime monitoring and pre-warning of faults between engine and subsystems, as well as engine and vehicle.

Since their entrance into the market, ISD series engines have become favored by OEM and users by virtue of their higher output per liter, lower fuel consumption, longer overhaul interval and lower usage cost.

Intelligent electronic controls 

Advanced electronic control integrated system share information among high speed datalinks, to ensure that the engine maintains the best operating status, effective fuel savings and low emissions under various loads.

Effective fuel saving 

With higher injection pressure up to 1600 bar, High Pressure Common Rail Fuel System features  more precise control of injection timing and amount of fuel, more complete combustion, broader economical fuel consumption zone, tremendously enhanced fuel economy, thus further improving low-speed performance, and resulting in better noise reduction and cold start performance.

Excellent power output 

Fast startup, good acceleration and gradeability, superior torque output at low speed.

Economical usage 

Highly integrated engine subsystems can realize excellent power, ultra long service life, and long maintenance intervals.

Leading emission level 

The NS V version is developed on the same platform as EEV version, featuring high durability and reliability and easy to upgrade. As of the end of 2010, Cummins Emission Solutions factories have supplied over 300,000 sets of selective catalytic reduction system (SCR) to worldwide engine enterprises, for Euro V, EEV and US EPA2010 emission solutions, with proven and approved reliability.

Product Portfolio

Engine model	Emission standard	Rated power output (kW@rpm)	Peak torque (N.m@rpm)	Cylinders	Displacement (L)	Aspiration	After treatment
ISD210 50	NS V/EuroV	155@2500	800@1200-1700	6	6.7	charged, inter-cooled	SCR
ISD230 50	NS V/EuroV	169@2500	900@1200-1700	6	6.7	charged, inter-cooled	SCR
ISD245 50	NS V/EuroV	180@2500	950@1200-1800	6	6.7	charged, inter-cooled	SCR
ISD270 50	NS V/EuroV	198@2500	970@1200-1700	6	6.7	charged, inter-cooled	SCR
ISD285 50	NS V/EuroV	210@2500	1020@1200-1800	6	6.7	charged, inter-cooled	SCR
ISD300 50	NS V/EuroV	220@2500	1100@1200-1800	6	6.7	charged, inter-cooled	SCR
ISD210 51	NS V/EuroV	154@2300	750@1100-1800	6	6.7	charged, inter-cooled	SCR
ISD230 51	NS V/EuroV	169@2300	850@1100-1800	6	6.7	charged, inter-cooled	SCR
ISD245 51	NS V/EuroV	180@2300	1020@1200-1600	6	6.7	charged, inter-cooled	SCR
ISD285 51	NS V/EuroV	210@2300	1020@1200-1800	6	6.7	charged, inter-cooled	SCR
ISDe185 40	NS IV/EuroIV	136@2500	700@1400	6	6.7	charged, inter-cooled	SCR
ISDe210 40	NS IV/EuroIV	155@2500	800@1400	6	6.7	charged, inter-cooled	SCR
ISDe230 40	NS IV/EuroIV	169@2500	900@1400	6	6.7	charged, inter-cooled	SCR
ISDe245 40	NS IV/EuroIV	180@2500	950@1400	6	6.7	charged, inter-cooled	SCR
ISDe270 40	NS IV/EuroIV	198@2500	970@1400	6	6.7	charged, inter-cooled	SCR
ISDe285 40	NS IV/EuroIV	210@2500	1020@1400	6	6.7	charged, inter-cooled	SCR
ISDe210 41	NS IV/EuroIV	155@2300	800@1400	6	6.7	charged, inter-cooled	SCR
ISDe230 41	NS IV/EuroIV	169@2300	900@1400	6	6.7	charged, inter-cooled	SCR
